Flame Retardant Semi-rigid Heat shrink tube with adhesive

2024/7/24 viewers
  • BrandDEEM
  • TypeDM-D150
  • order
Introduction

Applications
Designed to insulate and seal automotive wire connectors and components in the
automotive environment under the hood. After a special formula, it can work in a wide
temperature range.
Various
Material: Cross-linked polyolefin outer jacket, Hotmelt adhesive inner layer
Operating temperature:-40°C to +150°C
Minimum shrink temp. :110°C
Minimum full recovery temp.:135°C
Color: Black
Shrink ratio: 4:1 & 3:1
Insulation, Waterproof, Sealing
Meets: RoHS, ELV

Technical Data

Property Requirement Method of test
Material Dimensions
In accordance with Table
      DIMENSIONS
ASTM D 2671
Longitudinal change -10%  to+0% ASTM D 2671
Tensile  strength 10.3Mpa minimum ASTM D 2671
Ultimate  elongation 250%  minimum ASTM D 2671
Secant modulus 2%(recovered) 150Mpa  minimum ASTM D 2671
Heat shock(250C/4hrs)
No cracking,dripping or
flowing of outer jacket
ASTM D 2671
Dielectric strength(outer jacket only)* 19.7kv/mm minimun ASTM D 149
Volume  resistivity 1×1013Ω·cm   minimun ASTM D 257
Splice
  performance
Current leakage 0.25μA maximum
Thermal  shock  Current  leakage 0.25μA maximum -40℃ to 135℃ for 25 cycles
Heat  aging  Current  leakage 0.25uA maximum 1000  hrs.at  150℃
Fluid immersion
Current leakage
0.25μA maximum
24 hrs.at 25±3℃
ASTM Reference Fuel C
VV-F-800 Diesel Fuel
24hr.at 100℃±3℃
ASTM #3 Oil
Remove adhesive manually prior to testing

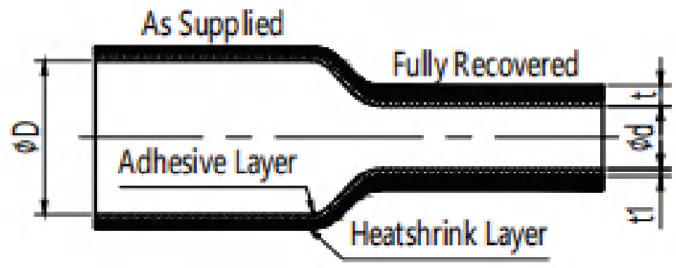

Dimensions

As supplied Fully recovered
ID min
D
ID max
d
WT nom.
t
WT nom.
t1
5.10 1.30 1.2 0.7
7.62 1.65 1.5 0.8
9.02 2.29 1.6 0.8
11.56 2.54 2.3 1.4
14.10 3.00 2.3 1.4
17.78 4.45 2.5 1.5
27.94 8.38 2.5 1.5
